DJI Air 2S Fly Drone Camera

Performance

• Maximum Horizontal Speed : 42.5 mph / 19 m/s (S Mode) ; 33.6 mph / 15 m/s (N Mode) ; 11.2 mph / 5 m/s (T Mode)
• Maximum Ascent Speed : 13.4 mph / 6 m/s
• Maximum Descent Speed : 13.4 mph / 6 m/s
• Maximum Wind Resistance : 23.5 mph / 10.5 m/s
• Flight Ceiling : 3.1 Miles / 5000 m
• Maximum Flight Time : 31 Minutes
• Maximum Hover Time : 30 Minutes
• Maximum Tilt Angle : 35⁰
• Maximum Flight Time : 31 Minutes
• Hovering Accuracy
  • Vision Positioning – Vertical: ±0.3′ / 0.1 m
  • GNSS – Vertical: ±1.6′ / 0.5 m
  • Vision Positioning – Horizontal: ±0.3′ / 0.1 m
  • GNSS – Horizontal: ±4.9′ / 1.5 m

Camera

• • Sensor Type : 1″-Type CMOS Sensor
  • Sensor Resolution : Effective: 20 Megapixel
  • Focal Length : 22mm (35mm Equivalent)
  • Field of View : 88^°
  • Maximum Aperture : f/2.8
  • Minimum Aperture : f/2.8
  • Minimum Focus Distance : 2′ / 0.6 m
  • ISO Sensitivity
    • Photo/Video – 100 to 6400 in Auto Mode
    • Photo/Video – 100 to 12,800 in Manual Mode
  • Video Format
    • 5472 x 3078p at 24/25/30 fps (150 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)
    • 3840 x 2160p at 24/25/30/48/50/60 fps (150 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)
    • 2688 x 1512p at 24/25/30/48/50/60 fps (150 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)
    • 1920 x 1080p at 24/25/30/48/50/60/120 fps (150 Mb/s MOV/MP4 via H.264/AVC, H.265/HEVC)
  • Broadcast Resolution : None
  • Still Image Support : DNG / JPEG / Raw – 20 MP (5472 x 3648) ; 20 MP (5472 x 3078)
  • Media/Memory Card Slot : Single Slot – SD/SDHC/SDXC [256 GB Maximum]
  • Photo Modes : Auto-Exposure Bracketing (AEB), Burst Shooting, Single Shot

Gimbal

• • • Number of Axes : 3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
    • Control Range : Pitch: -90 to 24° ; Yaw: -80 to 80°
    • Rotation Range: Controllable Range – Pitch (Tilt): 114° (-90 to 24°) ; Yaw (Pan): 160° (-80 to 80°)
    • Follow Speed : Tilt- 100°/s

Flight Control System

• • • GNSS Support : GPS, GLONASS

Vision/Sensing System

• • • Vision System : Downward / Forward / Backward

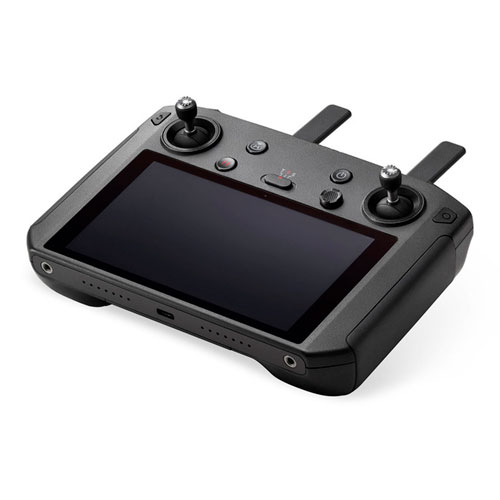

Remote Controller / Transmitter

• • • Operating Frequency : 2.4 GHz ; 5.8 GHz
    • Maximum Operating Distance : 7.5 Miles / 12 km
    • Operating Frequency : 26 dBm (2.4 G) ; 26 dBm (5.8 G)
    • Transmitter I/O : 1 x USB-C Input/Output
    • Mobile Device Compatibility : Devices up to 7.1″ / 180 mm Wide
    • Operating Temperature : 14 to 104°F / -10 to 40°C

Flight Battery

• • • Battery Chemistry : Lithium-Ion Polymer (LiPo)
    • Battery Capacity : 3500 mAh / 40.42 Wh
    • Battery Configuration : 3 S / 11.55 V
    • Maximum Charging Power : 38 W
    • Charging Temperature : 41 to 104°F / 5 to 40°C
    • Weight : 7.0 oz / 198 g

Charger

• • • AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 1.3 A
    • DC Input Power : 5 VDC at 2 A
    • Output Voltage : 13.2 V, 2.82 A
    • Power Rating : 38 W

General

• • • Rotor Configuration : 4
    • Operating Temperature : 32 to 72°F / 0 to 40°C
    • Diagonal Size : 11.9″ / 302 mm
    • Overall Dimensions : 7.1 x 3.0 x 3.8″ / 180.0 x 77.0 x 97.0 mm (Folded) ; 7.2 x 3.0 x 10.0″ / 183.0 x 77.0 x 253.0 mm (Unfolded)
    • Weight : 21.0 oz / 595 g

Packaging Info

• • • Package Weight : 6.57 lb
    • Box Dimensions (LxWxH) : 10.3 x 9.9 x 5.2″

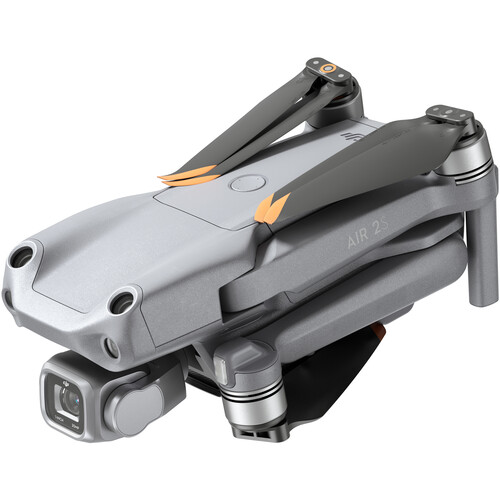

The compact and foldable design of the DJI Air 2S Fly More Combo Drone lets you easily capture breathtaking aerial images and video whenever the mood strikes. It’s an ideal alternative for use when travelling on vacation or for photography enthusiasts looking to record from new and unique perspectives. Piloting is made to be easy and intuitive via your smartphone and the DJI Fly app. Simply slip your phone into the included remote controller. Thanks to the Air 2S’s 3-axis gimbal, four remote antennae, and OcuSync 3.0 technology, you can receive a stable, live view from the drone up to 7.5 miles away.
